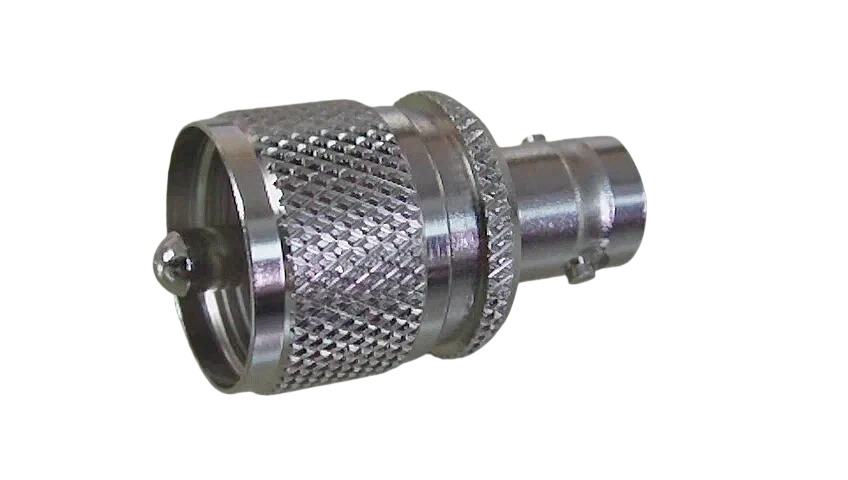

YCD-310 UHF Male To BNC Female RF Connector Overview
YCD-310 UHF Male To BNC Female is part of the UHF Series catalog for global RF connector sourcing, sample evaluation and OEM production. YCD supports buyers with model matching, cable fit confirmation, plating options and export quotation.
Specifications
| Connector Type | UHF (SO-239 / PL-259) |
| Interface Standard | GB/T 11313 series |
| Impedance | Non-constant impedance (for nominal 50 Ω systems) |
| Frequency Range | DC – 300 MHz |
| Voltage Rating | 500 V |
| Coupling | Threaded, 5/8-24 UNEF |
| Mating Cycles | ≥500 |
| Body Material | Brass, nickel plated |
| Center Contact | Brass / phosphor bronze |
| Insulator | PTFE or phenolic |
Specifications per GB/T 11313 series standard, for reference. Please confirm critical parameters before ordering.
| RFQ Parameter | Recommended Details From Buyer |
|---|---|
| Product model | YCD-310 UHF Male To BNC Female or equivalent drawing / sample photo |
| Cable fit | Cable type, cable diameter, impedance and assembly requirement |
| Customization | Mounting style, plating, material preference, packaging and labeling |
| Order information | Quantity, destination country, sample requirement and expected delivery schedule |
OEM and Sampling Support
For faster quotation, please send the product model, technical drawing, cable type, order quantity and application. YCD can help confirm suitable RF connector options before sample or bulk production.
