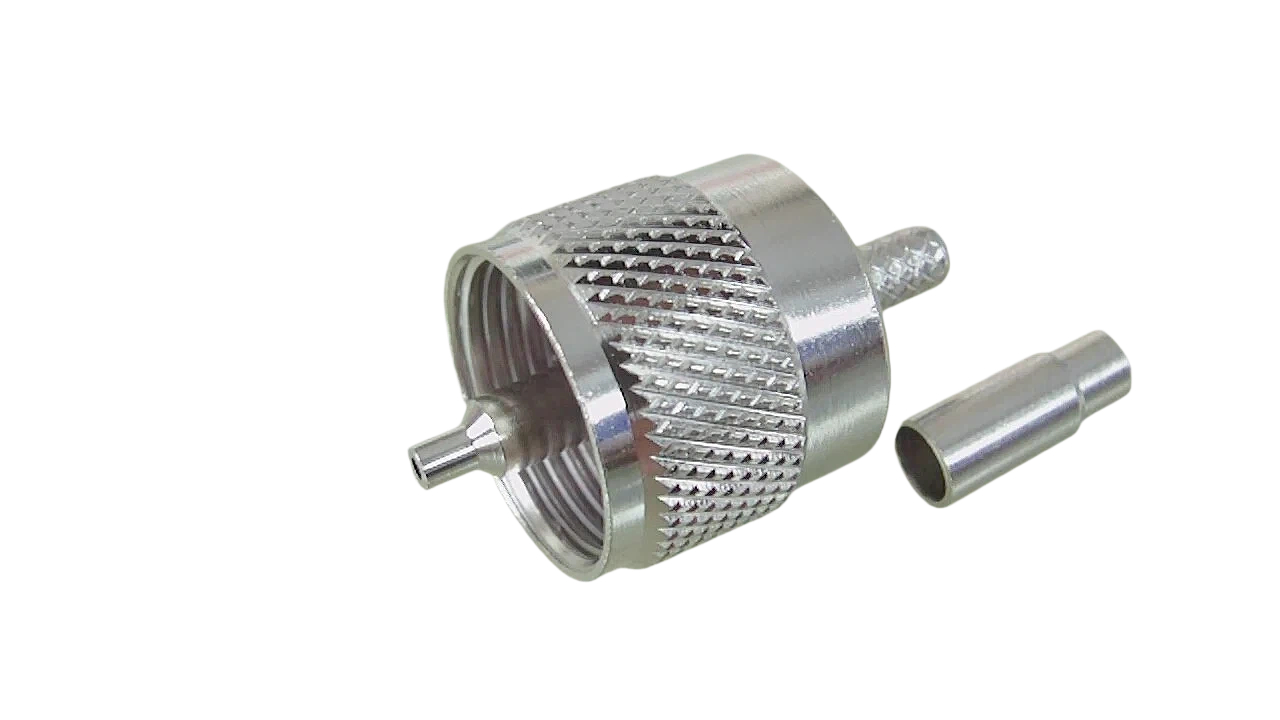

YCD-315 UHF Male Spearate Ring

YCD-315 UHF Male Spearate Ring from Yichangda Manufacturing for RF connector sourcing. Send model, cable type, impedance, mounting style, plating and quantity for quotation.

SKU: YCD-315 Category:

Description

YCD-315 UHF Male Spearate Ring RF Connector Overview

YCD-315 UHF Male Spearate Ring is part of the UHF Series catalog for global RF connector sourcing, sample evaluation and OEM production. YCD supports buyers with model matching, cable fit confirmation, plating options and export quotation.

ModelYCD-315
Product SeriesUHF Series
Impedance50 ohm typical
Connector / MountingMale interface
Material / PlatingBrass, copper alloy or full-copper options; nickel or gold plating by request
Applicationradio, antenna, industrial communication and RF adapter projects

Specifications

Connector Type UHF (SO-239 / PL-259)
Interface Standard GB/T 11313 series
Impedance Non-constant impedance (for nominal 50 Ω systems)
Frequency Range DC – 300 MHz
Voltage Rating 500 V
Coupling Threaded, 5/8-24 UNEF
Mating Cycles ≥500
Body Material Brass, nickel plated
Center Contact Brass / phosphor bronze
Insulator PTFE or phenolic

Specifications per GB/T 11313 series standard, for reference. Please confirm critical parameters before ordering.

RFQ Parameter Recommended Details From Buyer
Product model YCD-315 UHF Male Spearate Ring or equivalent drawing / sample photo
Cable fit Cable type, cable diameter, impedance and assembly requirement
Customization Mounting style, plating, material preference, packaging and labeling
Order information Quantity, destination country, sample requirement and expected delivery schedule

OEM and Sampling Support

For faster quotation, please send the product model, technical drawing, cable type, order quantity and application. YCD can help confirm suitable RF connector options before sample or bulk production.
