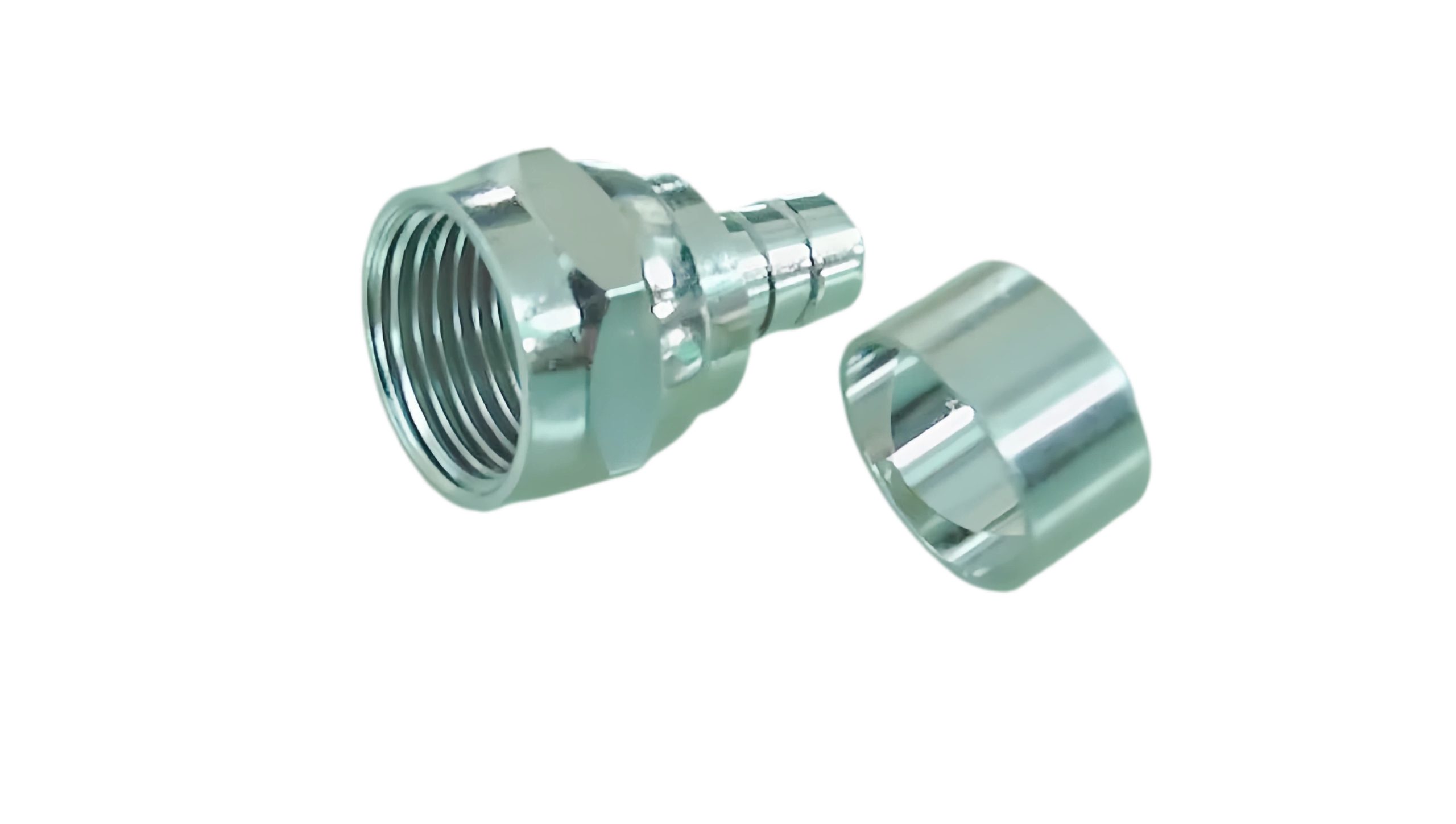

YCD-364 F Male Spearte Ring

YCD-364 F Male Spearte Ring from Yichangda Manufacturing for RF connector sourcing. Send model, cable type, impedance, mounting style, plating and quantity for quotation.

SKU: YCD-364 Category: Brand:

Description

YCD-364 F Male Spearte Ring RF Connector Overview

YCD-364 F Male Spearte Ring is part of the F Series catalog for global RF connector sourcing, sample evaluation and OEM production. YCD supports buyers with model matching, cable fit confirmation, plating options and export quotation.

ModelYCD-364
Product SeriesF Series
Impedance75 ohm typical
Connector / MountingMale interface
Material / PlatingBrass, copper alloy or full-copper options; nickel or gold plating by request
ApplicationCATV, broadband, antenna and set-top box coaxial applications

Specifications

Connector Type F-Type
Interface Standard GB/T 11313 series / IEC 60169-24
Impedance 75 Ω
Frequency Range DC – 1 GHz (satellite IF versions up to 2.5 GHz)
VSWR ≤1.5 (DC–1 GHz)
Coupling Threaded, 3/8-32 UNEF, or push-on
Body Material Brass or zinc alloy, nickel plated
Center Contact Cable center conductor
Insulator PE / PP

Specifications per GB/T 11313 series standard, for reference. Please confirm critical parameters before ordering.

RFQ Parameter Recommended Details From Buyer
Product model YCD-364 F Male Spearte Ring or equivalent drawing / sample photo
Cable fit Cable type, cable diameter, impedance and assembly requirement
Customization Mounting style, plating, material preference, packaging and labeling
Order information Quantity, destination country, sample requirement and expected delivery schedule

OEM and Sampling Support

For faster quotation, please send the product model, technical drawing, cable type, order quantity and application. YCD can help confirm suitable RF connector options before sample or bulk production.
