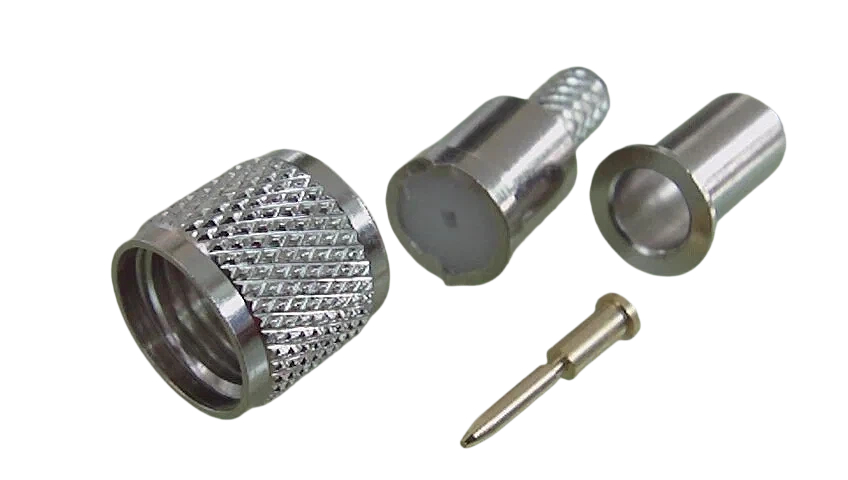

YCD-611 Mini UHF Male Crimp Type

YCD-611 Mini UHF Male Crimp Type from Yichangda Manufacturing for RF connector sourcing. Send model, cable type, impedance, mounting style, plating and quantity for quotation.

SKU: YCD-611 Category:

Description

YCD-611 Mini UHF Male Crimp Type RF Connector Overview

YCD-611 Mini UHF Male Crimp Type is part of the Mini-UHF Series catalog for global RF connector sourcing, sample evaluation and OEM production. YCD supports buyers with model matching, cable fit confirmation, plating options and export quotation.

ModelYCD-611
Product SeriesMini-UHF Series
Impedance50 ohm typical
Connector / MountingCrimp, Male interface
Material / PlatingBrass, copper alloy or full-copper options; nickel or gold plating by request
Applicationmobile radio, compact antenna systems and equipment assembly

Specifications

Connector Type Mini-UHF
Interface Standard GB/T 11313 series
Impedance 50 Ω
Frequency Range DC – 2.5 GHz
VSWR ≤1.25 (DC–2.5 GHz)
Coupling Threaded, 3/8-24 UNF
Mating Cycles ≥500
Body Material Brass, nickel plated
Center Contact Phosphor bronze / beryllium copper, gold or silver plated
Insulator PTFE

Specifications per GB/T 11313 series standard, for reference. Please confirm critical parameters before ordering.

RFQ Parameter Recommended Details From Buyer
Product model YCD-611 Mini UHF Male Crimp Type or equivalent drawing / sample photo
Cable fit Cable type, cable diameter, impedance and assembly requirement
Customization Mounting style, plating, material preference, packaging and labeling
Order information Quantity, destination country, sample requirement and expected delivery schedule

OEM and Sampling Support

For faster quotation, please send the product model, technical drawing, cable type, order quantity and application. YCD can help confirm suitable RF connector options before sample or bulk production.
